Profile Beds

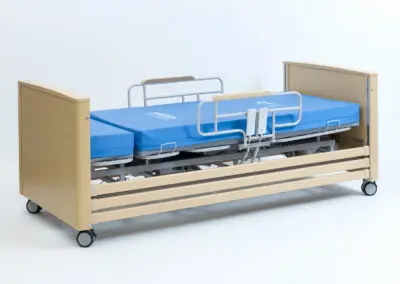

Channel Super Low Bed

The Channel Super Low bed offers an
ultra-low platform height of just 10cm from the floor.



It is an electrically adjustable wooden bed with adjustable back rest and foot rest sections. The easy to use handset features a safety stop mechanism to help prevent entrapment under the bed frame when lowering below 30cm. In order to continue lowering the bed to the optimum 10cm the user must press a separate button. In addition to an Auto-contour Chair function that allows for effortless positioning and prevents the patient sliding down the bed, the Channel Super Low Bed also features auto-regression, ensuring minimum pressure is placed on the sacrum region when the bed is profiled. The Apollo Super Low also has the added benefit of an integral extending section that allows the bed platform to be increased in length by 15cm.

  • Electrically operated backrest, height, tilt and knee break
  • Angle of back rest: 70°
  • Angle of thigh rest: 35°
  • Integral extending platform 15cm
  • Mattress platform dimensions: 198cm x 88cm or 213cm x 88cm (when integral extension piece is used)
  • Remote handset control
  • Individually lockable castors (castor diameter: 7.5cm)
  • Easy clean, low maintenance
  • Platform height at 10cm from the floor to top of the platform
  • Auto-contour function
  • Auto-regression function
  • Weight limit 180kg (28.3 stone)
  • 10cm to 70cm height variation
  • Trendelenburg tilt: 10.8° –  Anti-Trendelenburg tilt: 10.5°
  • Max. User Weight Limit: 28.3 stone / 180 Kg
  • Bed Dimensions: 220cm x 103cm or 235cm x 103cm (when integral extension piece is used)
  • Mattress Platform Dimensions: 198cm x 88cm or 213cm x 88cm (when integral extension piece is used)
  • Max. Height Position: 70cm
  • Lowest Height Position: 10cm
  • Headboard Height from mattress platform: 83cm
  • Warranty: 5 years on metal work and 5 year electrical actuator
  • Carton sizes and weights:
  • 1/3 Frame = 107 x 92 x 24cm – 50.5kg
  • 2/3 Bed End = 109 x 99 x 13cm – 28.5kg
  • 2/3 Bed End = 109 x 99 x 13cm – 28.5kg

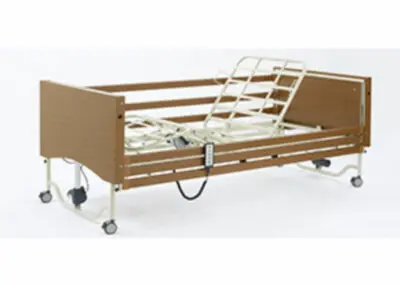

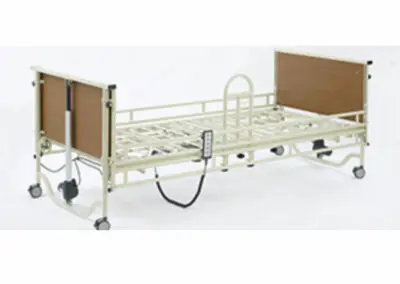

Channel Profile Bed

The Channel Profile Bed, is easy to use and very competitively priced.

The Channel Profile Bed, is easy to use, very competitively priced, and its space saving storage facility is of particular interest to Nursing, Care Home and Community environments. The clearly marked handset is simple to use for both carers and end users alike. Despite its unique foldaway design, this bed may be supplied with bed rails for added security.

  • Easy assembly and installation
  • 75cm twin wheel lockable castors
  • Four section bed fully electrically operated
  • Electric backrest raises to an angle of 72°
  • Electric Height adjustment
  • Electric knee break
  • Electric Trendelenburg and reverse Trendelenburg functions
  • Linak electronics to IPx4 Ingress Protection
  • Linak individual function lock-out handset
  • Easy clean, low maintenance
  • Optional bed rails and Extras
  • 2×2-bar steel full length side rails (for Community use)
  • 3-bar Aluminum wood effect full length side rails
  • Bed Lever and lifting pole
  • Optional wooden bed end panel covers are easily fitted to provide a more “homely” look
  • Transport Kit
  • Battery back-up option
  • Max. User Weight Limit: 28 stone / 180 Kg
  • Bed Dimensions: 202cm x 102cm
  • Overall length with wooden Head/Foot Boards: 202cm
  • Total weight including side rails and transport kit 76.10 Kg
  • Mattress Platform Dimensions: 197cm x 88cm
  • Max. Height Position: 65.5cm
  • Lowest Height Position: 24.5cm
  • Warranty: 3 years on metal work and 3 years electrical actuator
  • Bed Weight: Heaviest of four sections 20 Kg

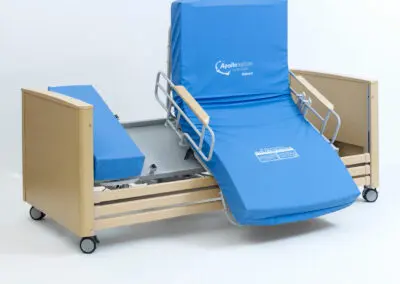

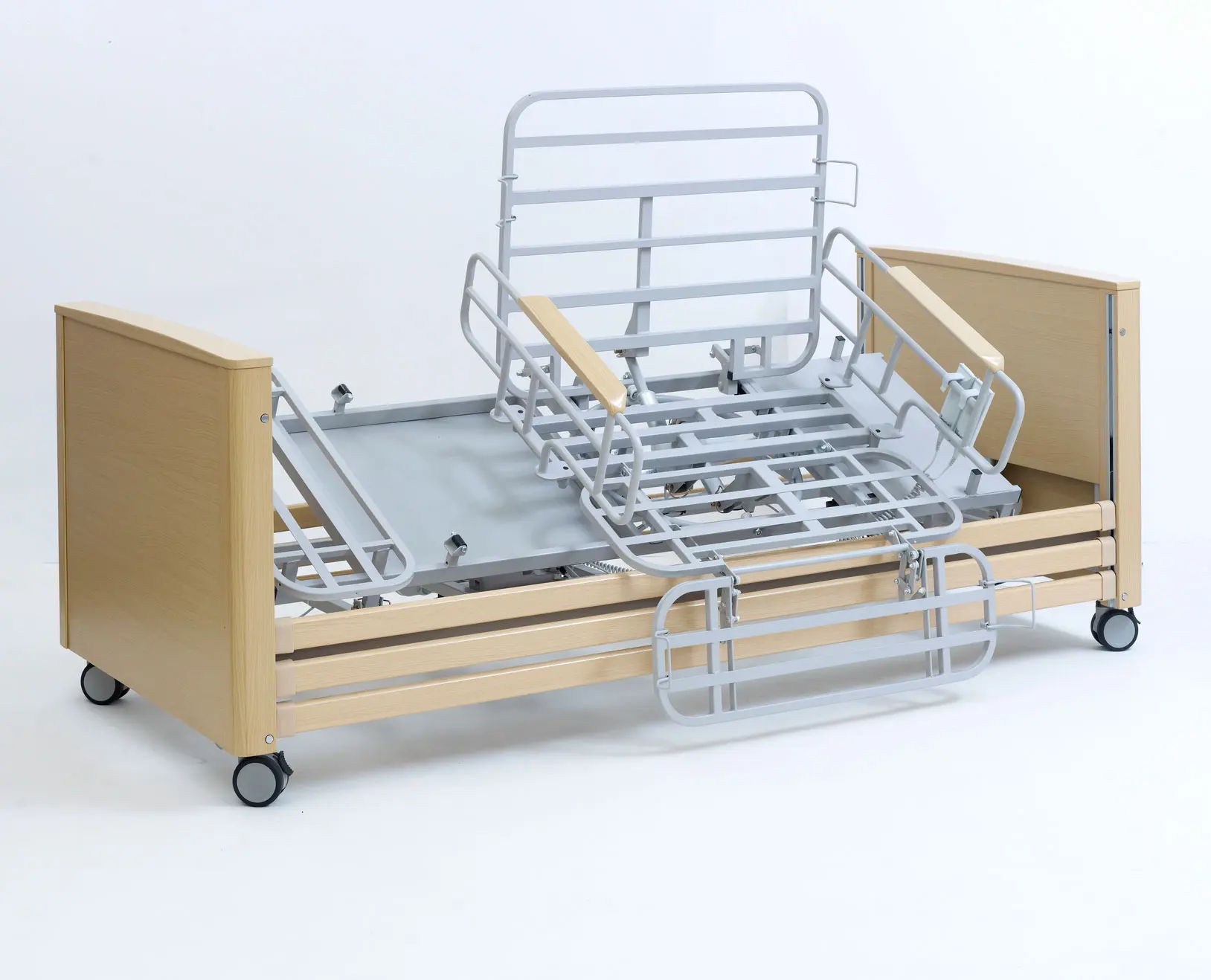

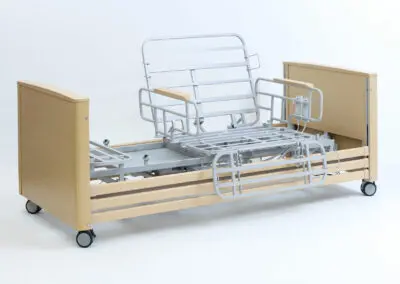

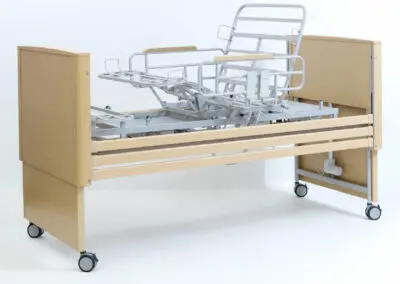

Channel Riser Rotate Bed

The Channel Riser Rotate Bed offers greater independence and mobility to the user who is weight bearing but struggles to transfer unassisted between standing and sitting.



Featuring all the usual functions of a profiling bed, the Channel Riser Rotate also enables the user to rotate and then tilt the chair to aid the transfer between standing and sitting. In addition to the many benefits of the Channel Riser Rotate an auto-regression function ensures minimum pressure is placed on the sacrum region when the bed is profiled. The Channel Riser Rotate can be set up to allow transfer to either the left or to the right and includes a ‘Very High Risk’ mattress with a vapour permeable, multi-stretch, high frequency welded cover offering outstanding pressure reduction, comfort and ease of cleaning. The Channel Riser Rotate bed represents excellent value for money and is one of the most cost effective chair beds on the market today for the home care, nursing and residential environments.

  • Angle of back rest: 70° – Angle of thigh rest: 35°• Electrically operated backrest, knee break, height, rotate and tilt
  • Angle of back rest: 70° – Angle of thigh rest: 35°
  • Mattress platform dimensions: 210cm x 90cm
  • Aluminium side rails (meet clause 201.9.8.3.3.3 of IEC 60601-2-52)
  • Hand rails to further aid transfer onto and off the bed
  • Double Remote hand controls
  • Individually lockable PVC twin castors (castor diameter: 10cm)
  • Profiled bed rotates through 90° to become chair
  • Chair tilts forwards to aid transfer between sitting and standing
  • Easy clean, low maintenance
  • One button auto-contour and rotate
  • Safety feature will not allow bed to tilt unless fully rotated
  • Auto-regression function
  • Weight limit 180kg (28 stone)
  • 48cm to 88cm height variation
  • Trendelenburg tilt: 10.8° – Anti-Trendelenburg tilt: 10.5°
  • Can be set up to rotate either to the left or to the right
  • Comes complete with Very High Risk foam mattress
  • Max. User Weight Limit: 28 stone / 180 Kg
  • Bed Dimensions: 235cm x 105cm
  • Mattress Platform Dimensions: 210cm x 90cm
  • Max. Height Position: 88cm
  • Lowest Height Position: 48cm
  • Headboard Height from mattress platform: 41cm
  • Warranty: 5 years on metal work and 5 years electrical actuator
  • Carton sizes and weights: 1/5 Frame = 220 x 92 x 31cm – 86kg
  • 2/5 Bed End = 109.5 x 93.5 x 13cm – 29kg
  • 3/5 Bed End = 109.5 x 93.5 x 13cm – 29kg
  • 4/5 Side rails = 216 x 38 x 5.5cm – 13kg
  • 5/5 Hand rails = 87 x 47 x 10.5cm – 5kg
